Development

This document is for developers who want to extend FastBee-Arduino functionality, covering development environment setup, coding standards, testing workflow, extension development and contribution guidelines.

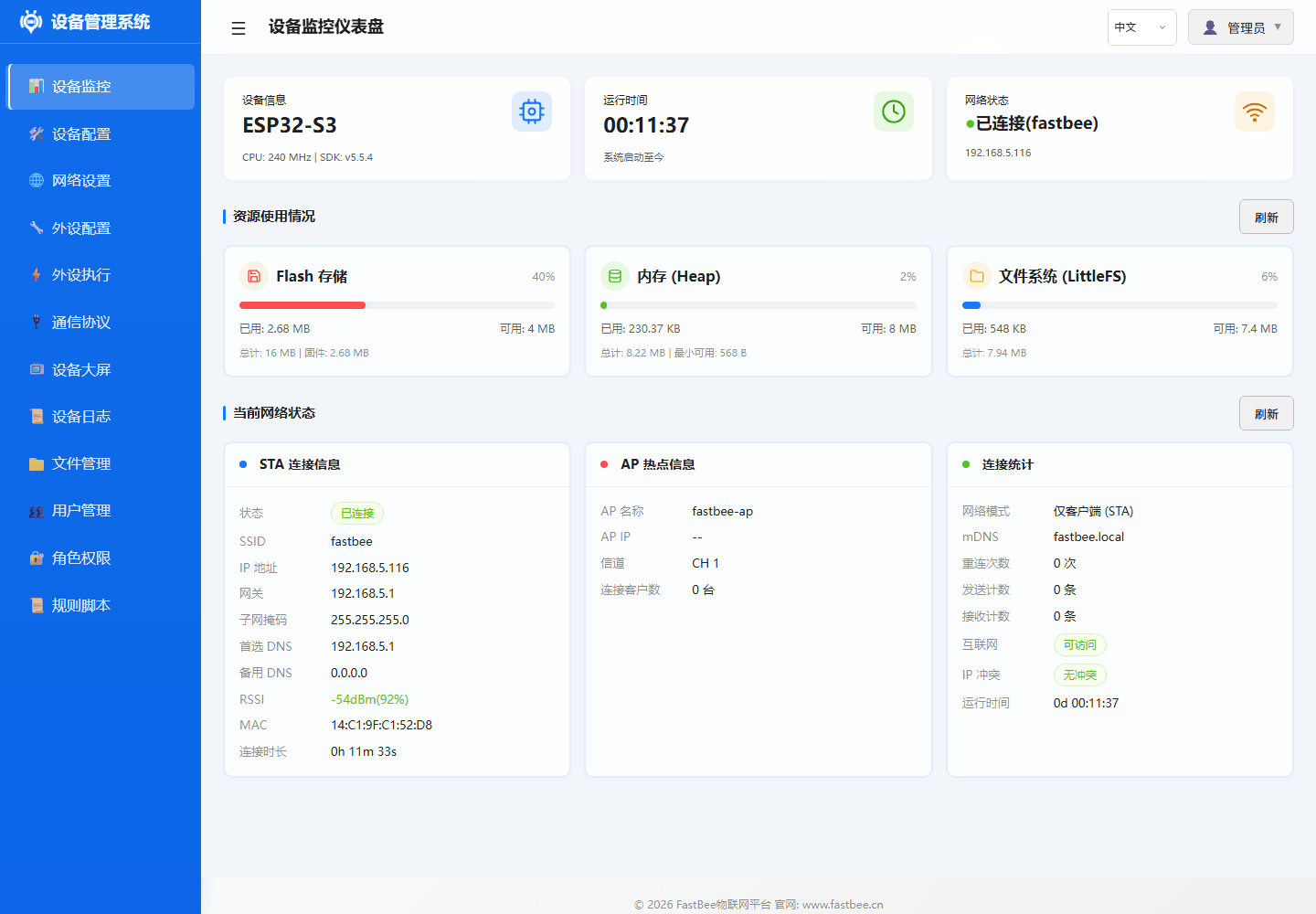

When developing and debugging, first confirm firmware online status and resource margins on the dashboard, then use Logs, Peripherals, and Peripheral Execution to verify behavior. Configuration backup is under Device Configuration > Advanced Configuration.

Name	Status	Trigger	Target Peripheral	Action	Stats	Actions
ADC Voltage Read & Report	Disabled	Timer Trigger	ADC Analog Conversion	Sensor Data Read -> ADC Analog Conversion	Trigger Count: 1	Run Once / Edit / Enable / Delete
ADC Voltage Below 2.30V Close Relay	Disabled	Event Trigger	-	Set Low Level	Trigger Count: 1	Run Once / Edit / Enable / Delete
ADC Voltage Above 2.50V Open Relay	Disabled	Event Trigger	-	Set High Level	Trigger Count: 1	Run Once / Edit / Enable / Delete
ADC Voltage Display on Digital Tube	Disabled	Timer Trigger	-	Display Number	Trigger Count: 1	Run Once / Edit / Enable / Delete
NTP Time Sync	Disabled	Platform Trigger (MQTT)	-	NTP Sync	Trigger Count: 1	Run Once / Edit / Enable / Delete
OLED Temp & Humidity Display	Disabled	Timer Trigger	-	OLED Custom Display	Trigger Count: 1	Run Once / Edit / Enable / Delete
OLED Custom Display - Button Trigger Device Info	Disabled	Event Trigger	-	OLED Custom Display	Trigger Count: 1	Run Once / Edit / Enable / Delete
OLED Custom Display - Timer Mixed	Disabled	Timer Trigger	-	OLED Custom Display	Trigger Count: 1	Run Once / Edit / Enable / Delete
OLED Custom Display - MQTT Message	Disabled	Platform Trigger (MQTT)	-	OLED Custom Display	Trigger Count: 1	Run Once / Edit / Enable / Delete
OTA Upgrade	Disabled	Platform Trigger (MQTT)	-	OTA Upgrade	Trigger Count: 1	Run Once / Edit / Enable / Delete

After extension development, check whether source code, configuration, Web assets, build environment and device verification records are in sync according to the artifact map, to avoid only updating firmware while missing LittleFS or release notes.

Developers should first study architecture and core framework before diving into specific peripheral, protocol or peripheral execution modules; after changes, return to testing and release path for verification closure.

Development Environment Setup

Required Tools

Tool	Version	Purpose
VSCode	Latest	Recommended IDE
PlatformIO IDE	Latest	Embedded development plugin
ESP32 DevKit	ESP32/C3/S3	Hardware debugging
USB Data Cable	Data transfer capable	Flashing and serial debugging

Optional Tools

Tool	Purpose
PlatformIO Core (CLI)	Command-line builds
Node.js 16+	Web asset building
Git	Version control
Serial Debug Tool	PuTTY/MobaXterm
MQTT Client	MQTT Explorer/MQTTX

Clone Project

git clone https://gitee.com/beecue/fastbee-arduino.git
cd FastBee-Arduino

VSCode Configuration

1. Install PlatformIO IDE plugin
2. Open project folder
3. PlatformIO auto-downloads dependencies (first time takes a few minutes)
4. Confirm .vscode/c_cpp_properties.json is generated

Project Structure

For directory details, see Project Directory & Files. Brief structure:

FastBee-Arduino/
├── src/          # C++ source (core/network/peripherals/protocols/security/systems/utils)
├── include/      # Header files (mirrors src structure)
├── web-src/      # Web frontend source
├── data/         # Default config and post-build Web assets
├── scripts/      # Build, deploy and test scripts
├── test/         # Native unit tests
├── docs/         # Project documentation
└── platformio.ini # PlatformIO build configuration

Coding Standards

C++ Code Standards

Naming Conventions:

Type	Convention	Example
Class name	PascalCase	PeripheralManager
Method name	camelCase	initHardware()
Member variable	m_ + camelCase	m_peripherals
Constant	UPPER_SNAKE_CASE	MAX_PERIPHERALS
Enum value	UPPER_SNAKE_CASE	ACTION_HIGH
Local variable	camelCase	sensorValue
Namespace	lowercase	fastbee::core

Code Format:

• Follow .clang-format configuration
• Indentation: 4 spaces
• Braces: K&R style (opening brace on same line)
• Line width: 120 characters

Example:

class PeripheralManager {
public:
    bool addPeripheral(const PeripheralConfig& config);
    void initHardware();

private:
    std::map<std::string, Peripheral*> m_peripherals;
    bool m_initialized = false;
    static const int MAX_PERIPHERALS = 32;
};

Comment Standards:

• File header: Brief description of file purpose
• Class/method: Doxygen style
• Complex logic: Inline comments explaining why
• Public API: Complete parameter/return value descriptions

/**
 * @brief Initialize peripheral hardware
 *
 * Allocate pins based on configuration, initialize drivers and register to peripheral list.
 *
 * @param config Peripheral configuration
 * @return true Initialization successful
 * @return false Initialization failed (pin conflict/driver anomaly)
 */
bool initHardware(const PeripheralConfig& config);

Frontend Code Standards

Naming Conventions:

• Variables/functions: camelCase
• Constants: UPPER_SNAKE_CASE
• Class names: PascalCase (if applicable)

Code Format:

• Follow .eslintrc.json configuration
• Indentation: 4 spaces
• Strings: Single quotes
• Semicolons: Required
• Line width: 120 characters

Example:

function loadPeripherals() {
    const apiUrl = '/api/peripherals';
    fetch(apiUrl)
        .then(response => response.json())
        .then(data => {
            renderPeripherals(data);
        })
        .catch(error => {
            console.error('Failed to load peripherals:', error);
        });
}

Build Workflow

For detailed build, flash and deploy commands, see Deploy, Flash & Test.

# Build firmware (select corresponding environment)
pio run -e esp32-F4R0
pio run -e esp32c3-F4R0
pio run -e esp32s3-F16R8

# One-step build and flash
powershell -ExecutionPolicy Bypass -File scripts\deploy.ps1 -Env esp32-F4R0 -Port COM6

# Build Web assets only
node scripts/gzip-www.js --env esp32-F4R0

Testing Workflow

For detailed test layering, matrix and cases, see Testing & Edition Verification Guide.

# Quick pre-commit check
powershell -ExecutionPolicy Bypass -Command ".\scripts\test-all.ps1 -Checks static,build"

# Full local matrix
powershell -ExecutionPolicy Bypass -Command ".\scripts\test-all.ps1 -Checks static,native,build,artifacts"

# Run single native test
pio test -e native -f test_web_api

Extension Development

Adding a New Peripheral

Step 1: Define Peripheral Type

Add type enum in include/core/PeripheralTypes.h:

enum PeripheralType {
    // ... existing types
    YOUR_SENSOR_TYPE = 50,  // Choose unused value
};

Step 2: Implement Driver Class

Create driver file in src/peripherals/:

YourSensorDriver.h:

#pragma once
#include "PeripheralTypes.h"

class YourSensorDriver {
public:
    bool begin(int pin, const std::map<std::string, String>& params);
    float readValue();
    void end();

private:
    int m_pin;
    bool m_initialized = false;
};

YourSensorDriver.cpp:

#include "YourSensorDriver.h"
#include <Arduino.h>

bool YourSensorDriver::begin(int pin, const std::map<std::string, String>& params) {
    m_pin = pin;
    pinMode(m_pin, INPUT);
    m_initialized = true;
    return true;
}

float YourSensorDriver::readValue() {
    if (!m_initialized) return -1;
    return analogRead(m_pin);
}

void YourSensorDriver::end() {
    m_initialized = false;
}

Step 3: Register to PeripheralManager

Add initialization logic in PeripheralManager::initHardware():

case YOUR_SENSOR_TYPE: {
    auto* driver = new YourSensorDriver();
    if (!driver->begin(pins[0], config.params)) {
        delete driver;
        return false;
    }
    peripheral->setDriver(driver);
    break;
}

Step 4: Add Sensor Read Support

Add parsing logic in PeriphExecExecutor::executeSensorRead():

if (sensorCategory == "your_sensor") {
    auto* driver = static_cast<YourSensorDriver*>(peripheral->getDriver());
    float value = driver->readValue();
    cache[key] = String(value);
    return true;
}

Step 5: Write Documentation

• Create config doc in docs/peripherals/: your-sensor.md
• Create usage example in docs/examples/: 49-your-sensor.md
• Update docs/peripherals/sensor-guide-complete.md

Step 6: Test & Verify

• Connect hardware, flash firmware
• Add peripheral via Web interface
• Verify sensor readings are normal
• Create rules to test linked actions

Adding a New Protocol

Step 1: Implement Protocol Handler

Inherit ProtocolHandler interface:

class YourProtocolHandler : public ProtocolHandler {
public:
    bool connect(const ProtocolConfig& config) override;
    bool disconnect() override;
    bool publish(const String& topic, const String& payload) override;
    bool subscribe(const String& topic) override;
    bool isConnected() override;

private:
    bool m_connected = false;
};

Step 2: Register to ProtocolManager

Add in ProtocolManager::initProtocol():

if (config.protocolType == "your_protocol") {
    auto* handler = new YourProtocolHandler();
    handler->connect(config);
    m_protocols[config.id] = handler;
}

Step 3: Add API Routes

Create route handler in network/handlers/:

YourProtocolRouteHandler.cpp:

void handleGetConfig(AsyncWebServerRequest* request) {
    // Return protocol configuration
}

void handlePostConfig(AsyncWebServerRequest* request) {
    // Save protocol configuration
}

Register in WebConfigManager::setupRoutes():

server.on("/api/your-protocol", HTTP_GET, handleGetConfig);
server.on("/api/your-protocol", HTTP_POST, handlePostConfig);

Step 4: Frontend Pages

• Add config page in web-src/pages/: your-protocol.html
• Add API call logic in web-src/js/
• Update web-src/modules/ module routing

Step 5: Write Documentation

• Create protocol doc in docs/protocols/
• Update docs/protocols/README.md

Contribution Guidelines

PR Submission Workflow

1. Fork Project

   • Fork the repository on Gitee/GitHub

2. Create Feature Branch

   git checkout -b feature/your-feature-name

3. Commit Changes

   git add .
   git commit -m "feat: add your feature description"

4. Push to Branch

   git push origin feature/your-feature-name

5. Open Pull Request

   • Create PR in the repository
   • Describe feature, test status and related issues in detail

Commit Standards

Follow Conventional Commits:

Type	Description	Example
feat	New feature	feat: add BMP280 sensor driver
fix	Bug fix	fix: resolve MQTT reconnect issue
docs	Documentation update	docs: add architecture diagram
style	Code formatting	style: fix indentation
refactor	Refactoring	refactor: simplify peripheral init
test	Test related	test: add peripheral unit tests
chore	Build/tooling	chore: update platformio.ini

Code Review Checklist

Functionality Completeness:

• Features implemented as required
• Edge cases handled
• Error handling is comprehensive

Memory Safety:

• No memory leaks (new/delete paired)
• No buffer overflows
• Null checks before pointer use

Build Quality:

• No compiler warnings
• Passes all unit tests
• Follows coding standards

Documentation Sync:

• Related documentation updated
• Code comments added
• CHANGELOG updated (if applicable)

Performance Considerations:

• Avoid frequent memory allocation
• Use reference passing for large objects
• Async processing for time-consuming operations

Debugging Tips

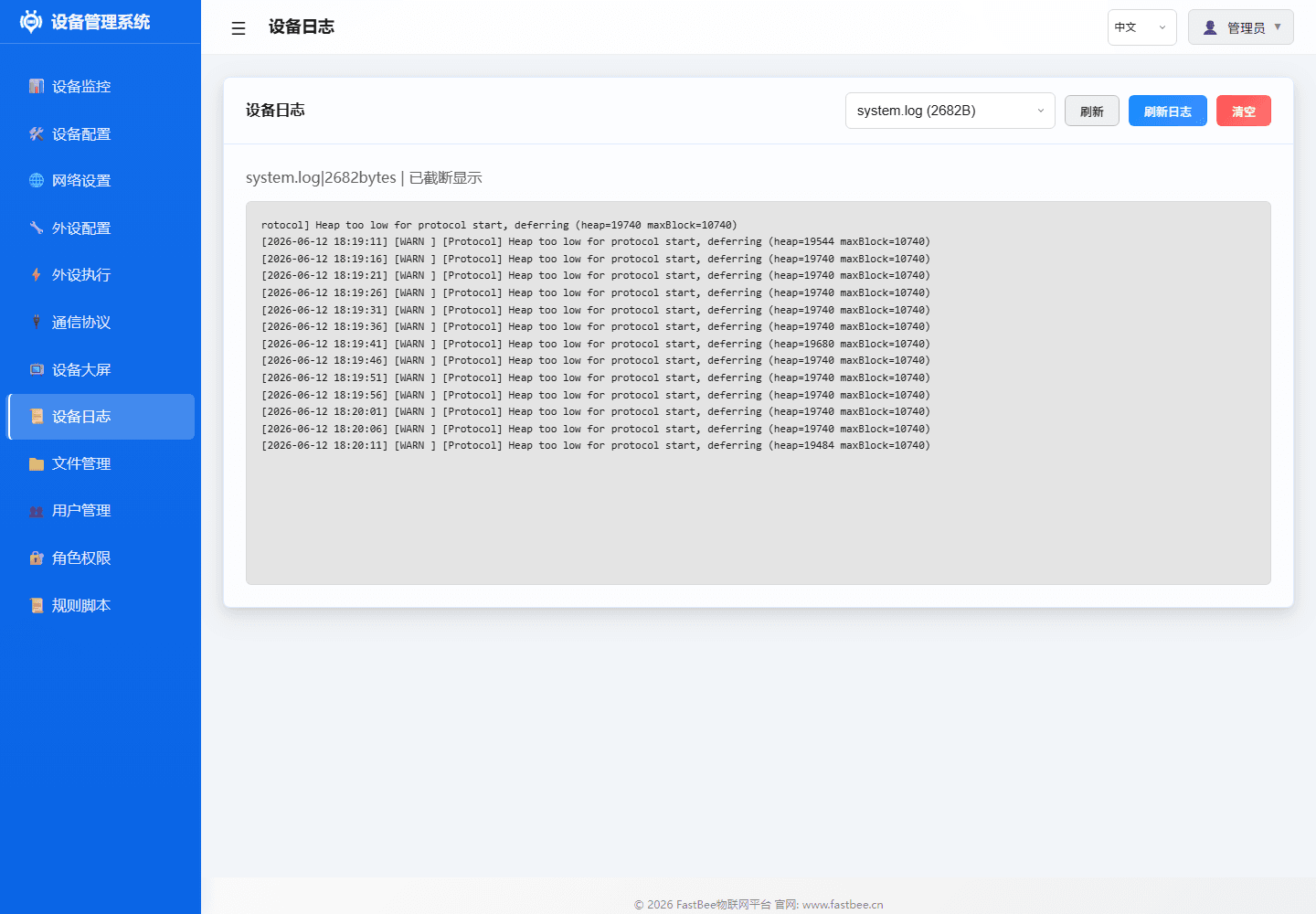

Serial Logging

Output Logs:

Serial.printf("[YOUR_MODULE] Message: %s\n", value.c_str());
Serial.printf("[YOUR_MODULE] Value: %d, Float: %.2f\n", intVal, floatVal);

Log Levels:

ESP_LOGE("TAG", "Error message");   // Error
ESP_LOGW("TAG", "Warning message"); // Warning
ESP_LOGI("TAG", "Info message");    // Info
ESP_LOGD("TAG", "Debug message");   // Debug

Memory Diagnostics

View Memory Status:

Serial.printf("Free heap: %lu bytes\n", ESP.getFreeHeap());
Serial.printf("Max alloc: %lu bytes\n", ESP.getMaxAllocHeap());
Serial.printf("Min free heap: %lu bytes\n", ESP.getMinFreeHeap());

PSRAM Status:

#ifdef BOARD_HAS_PSRAM
    Serial.printf("PSRAM size: %lu bytes\n", ESP.getPsramSize());
    Serial.printf("Free PSRAM: %lu bytes\n", ESP.getFreePsram());
#endif

Web API Debugging

Browser Developer Tools:

1. Open Network panel
2. View API request/response
3. Check JSON format
4. View response status codes

curl Testing:

# Get peripheral list
curl http://192.168.4.1/api/peripherals

# Add a peripheral
curl -X POST http://192.168.4.1/api/peripherals \
  -H "Content-Type: application/json" \
  -d '{"id":"test_01","name":"Test","type":12,"enabled":false,"pinCount":1,"pins":[26,255,255,255,255,255,255,255],"params":{}}'

Common Issue Troubleshooting

Issue	Troubleshooting Steps
Web not accessible	Check WiFi connection, IP address, firewall
Peripheral not responding	Check pin config, enable status, wiring
MQTT disconnected	Check server address, port, credentials
Insufficient memory	Disable unnecessary runtime features, reduce concurrency, then choose a higher-resource environment if needed
Build failed	Clean build, check dependencies, update PlatformIO
Upload failed	Check USB connection, driver, serial port usage

Performance Profiling

CPU Usage:

uint32_t start = micros();
your_function();
uint32_t elapsed = micros() - start;
Serial.printf("Execution time: %lu us\n", elapsed);

Stack Usage:

#include <esp_task.h>
Serial.printf("Stack high water: %lu bytes\n", uxTaskGetStackHighWaterMark(NULL));

Related Documentation

• Architecture Design - System architecture and module relationships
• Core Framework - Main components and key classes
• Code Change Guidelines - Pre-change impact analysis, regression testing and high-risk change checklist
• Build Configuration - PlatformIO environments, feature flags and common commands
• Resource Usage & Feature Trimming - RAM/Flash budget and on-demand compilation strategy
• Testing & Edition Verification - Automated test matrix and device smoke/soak workflow
• Peripheral Execution Flow - Complete rule engine business logic
• Quick Start - Complete first configuration in 5 steps
• Source Repository - Gitee source code

---
