FMQ Cluster Deployment

FMQ Service Deployment

Copy Deployment Files

Copy the fmq folder to /opt, then grant execution permission:

chmod u+x permission.sh
./permission.sh

Update Spring Boot Configuration

Edit opt/fmq/application.yml. Use internal IP addresses for the local node and cluster node list:

localAddress: 1x.x.x.x
static-ip-addresses: 1x.x.x.x, 1x.x.x.xx

Update the Kafka bootstrap-servers setting and enable the message bridge when Kafka forwarding is required:

kafka:
  broker-enabled: true
  bootstrap-servers: 127.0.0.1:9092
  producer:
    acks: -1
    retries: 3
    batch-size: 16384
    buffer-memory: 33554432
    key-serializer: org.apache.kafka.common.serialization.StringSerializer
    value-serializer: org.apache.kafka.common.serialization.StringSerializer
    partitioner:
      class: cn.fastbee.iot.store.kafaka.MqttPartitioner
  message-bridge:
    bridge-topics:
      - "property_post"
    enable: true

Update the WebHook authentication URL:

webhook-url: http://127.0.0.1:18083/webhook

Package The Project

In the fmq-application pom file, keep resource exclusions for runtime configuration:

<resources>
    <resource>
        <directory>src/main/resources</directory>
        <excludes>
            <exclude>application.yml</exclude>
            <exclude>application-dev.yml</exclude>
        </excludes>
    </resource>
</resources>

Run package in IDEA, then copy fmq-application.jar to /opt/fmq.

Create A Systemd Service

Register the service:

./fmq-system-register.sh

Start, check, and stop the service:

systemctl start fmq
systemctl status fmq
systemctl stop fmq

Direct Run Mode

./fmq-start.sh start
./fmq-start.sh stop

Deploy Other Nodes

Before deploying each additional node, update its local IP and the cluster IP list in application.yml:

localAddress: 1x.x.x.x
static-ip-addresses: 1x.x.x.x, 1x.x.x.xx

Cluster Verification

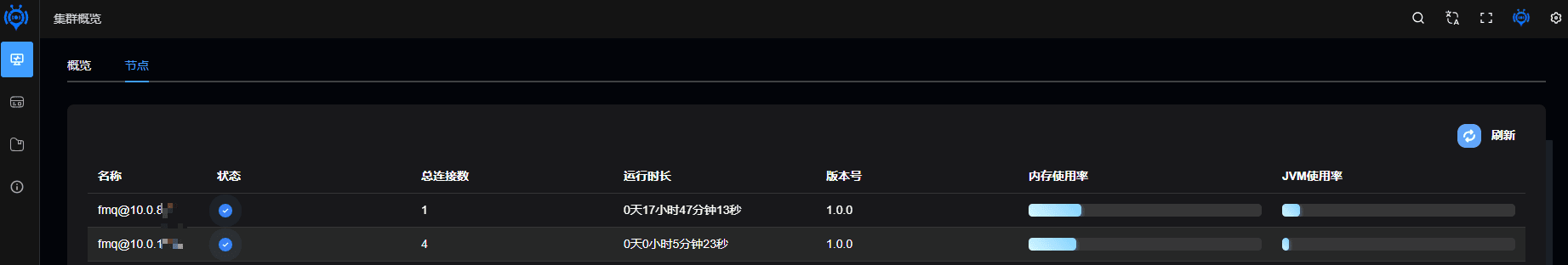

After deployment, open http://ip:18083, log in to the FMQ visual console, and check Home -> Nodes.

If multiple nodes are displayed, the cluster discovery configuration is effective.

FAQ

A node starts but other nodes are not visible in the console?

Check that localAddress in each node's application.yml is the node's own internal IP, that static-ip-addresses lists all cluster node IPs, and that internal ports between nodes are reachable without firewall blocking.

The startup script reports permission errors?

Run chmod u+x permission.sh and ./permission.sh in the fmq directory first, then start with fmq-start.sh or the systemd service.

Messages are not forwarded after enabling the Kafka bridge?

Confirm the bootstrap-servers address is reachable, message-bridge.enable is true, and the topics in bridge-topics match the actual reporting topics (such as property_post).
