MQTTX Device Simulation ​

1. Preparation and Connection ​

1.1. Prepare Authentication Information ​

Download and install the MQTTX tool. Create and publish an MQTT product in FastBee, prepare a device, and record the product ID, device number, MQTT username, MQTT password, and user ID from the product and device details. If device authorization is enabled for the product, also obtain the device authorization code.

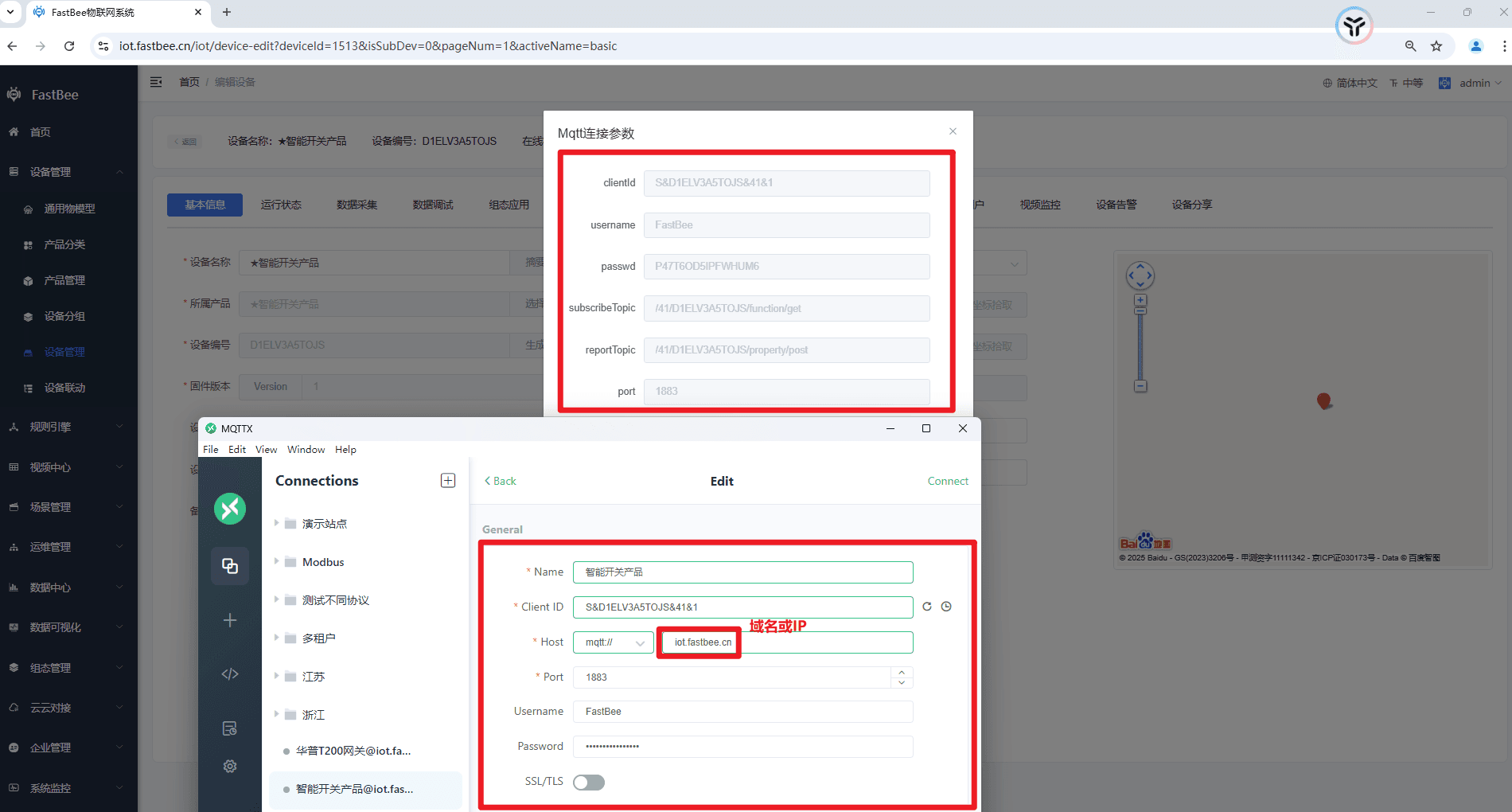

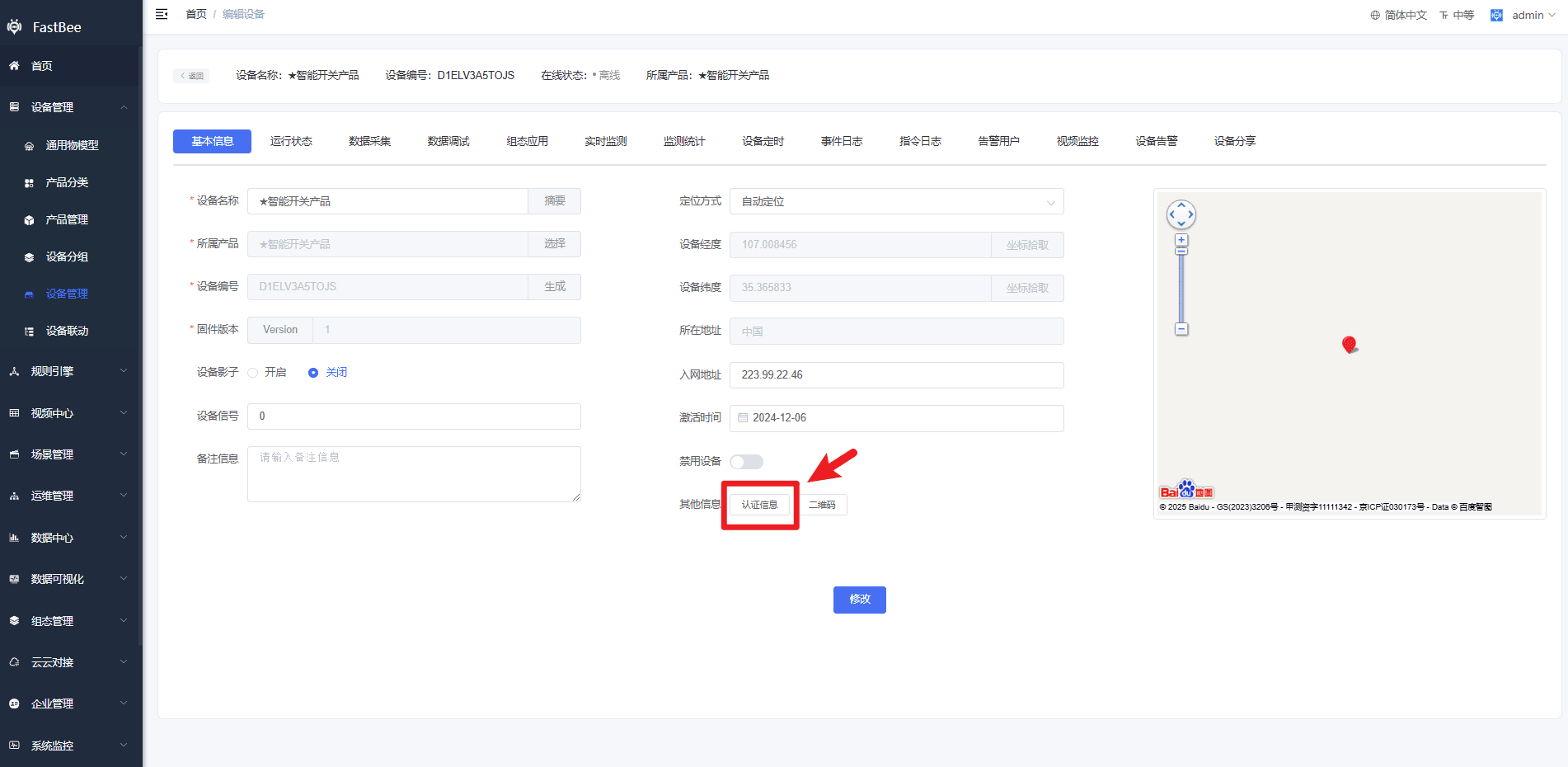

Device authentication information in FastBeeDevice authentication fields used by MQTTX

1.2. Configure the MQTTX Connection ​

Create a connection in MQTTX and complete the following fields. Simple authentication is convenient for initial testing; use encrypted authentication in production.

MQTTX fieldValue
HostIP address or domain name of the FastBee server
Port1883
Client IDS&deviceNumber&productId&userId
UsernameMQTT username from the product details
PasswordMQTT password from the product details; when device authorization is enabled, use mqttPassword&deviceAuthorizationCode
text
Client ID: S&D68329VL588&2&1
Username: fastbee
Password: PHYFED93WSFF1DAS

After the connection succeeds, the device status changes to online in the device details. See MQTT Device Access for the complete authentication and encryption rules.

2. Device Reporting Flow ​

2.1. Subscribe to the Platform Command Topic ​

Add a subscription in MQTTX, replacing {productId} and {deviceNum} with the actual product ID and device number:

text
/{productId}/{deviceNum}/function/get

2.2. Report Device Information and Properties ​

Publish device information to /info/post, then publish property data to /property/post. The examples below use product ID 2 and device number D68329VL588; replace them with your own values.

text
/2/D68329VL588/info/post
json
{
  "rssi": -43,
  "firmwareVersion": 1.0,
  "status": 3,
  "userId": 1,
  "summary": {
    "name": "FastBee MQTT Demo",
    "type": "mqttx"
  }
}

Property reporting topic:

text
/2/D68329VL588/property/post
json
[
  {
    "id": "temperature",
    "value": "26.5",
    "remark": "MQTTX simulated reporting"
  }
]

The id must exactly match a Thing Model identifier in the product. After publishing, open the device details and confirm that the runtime state and device logs have updated.

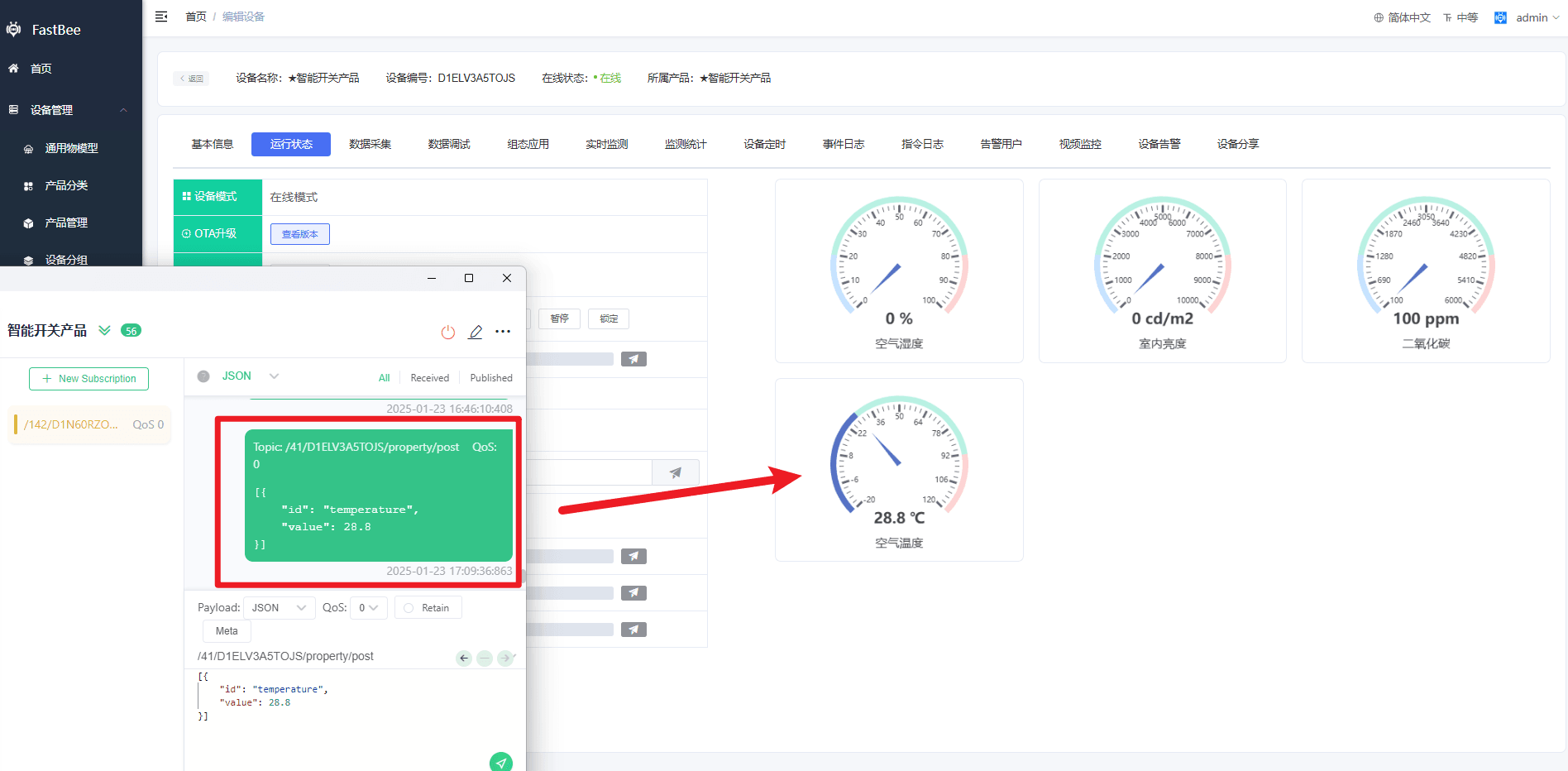

MQTTX simulated device data reporting

3. Platform Command Issuing ​

3.1. Configure the Receiving Topic ​

Confirm that MQTTX has subscribed to /{productId}/{deviceNum}/function/get and that the device remains online.

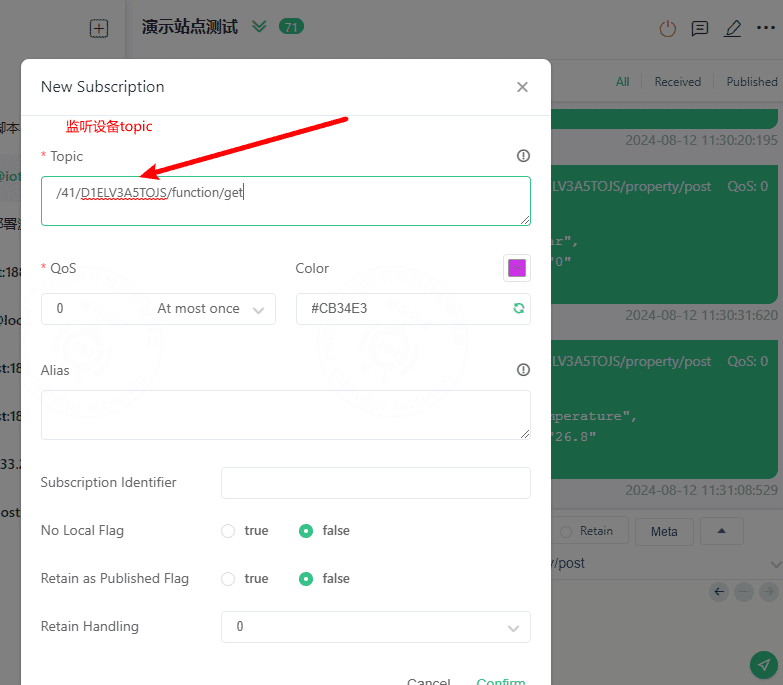

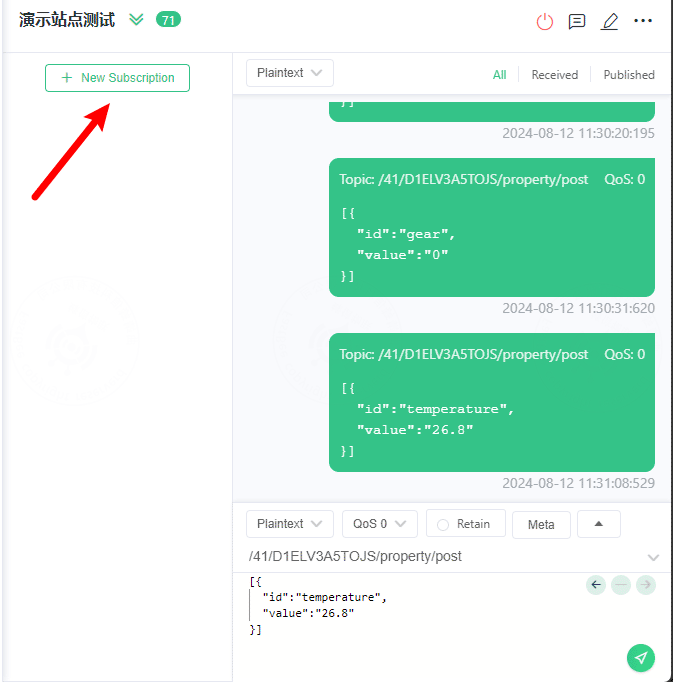

Configure receiving topic 1Configure receiving topic 2

3.2. Issue a Command and Verify the Result ​

In the device details, select a writable property or callable function and send a command. MQTTX should receive a message similar to the following:

json
[
  {
    "id": "switch",
    "value": "0",
    "remark": "Platform command"
  }
]

After simulating execution on the device, report the latest state through /{productId}/{deviceNum}/property/post. Finally, check both the platform command and the device response in the device details and logs to complete the verification loop.

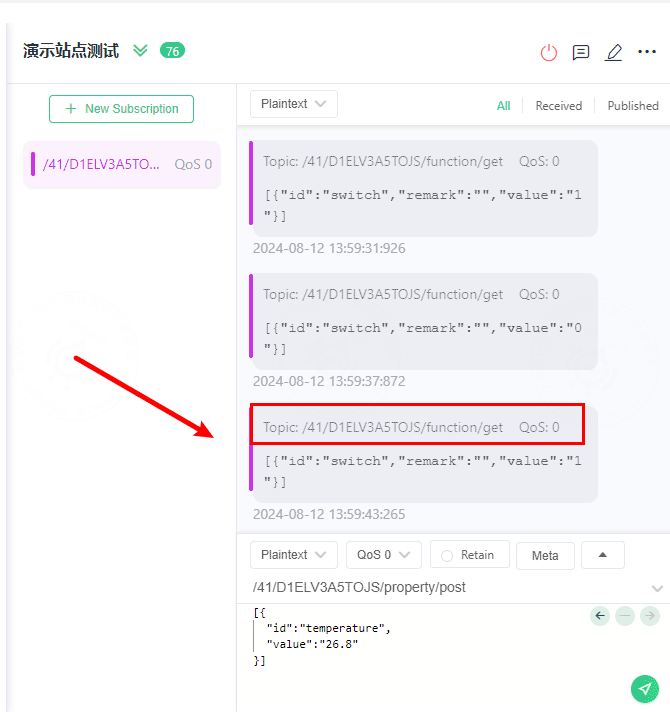

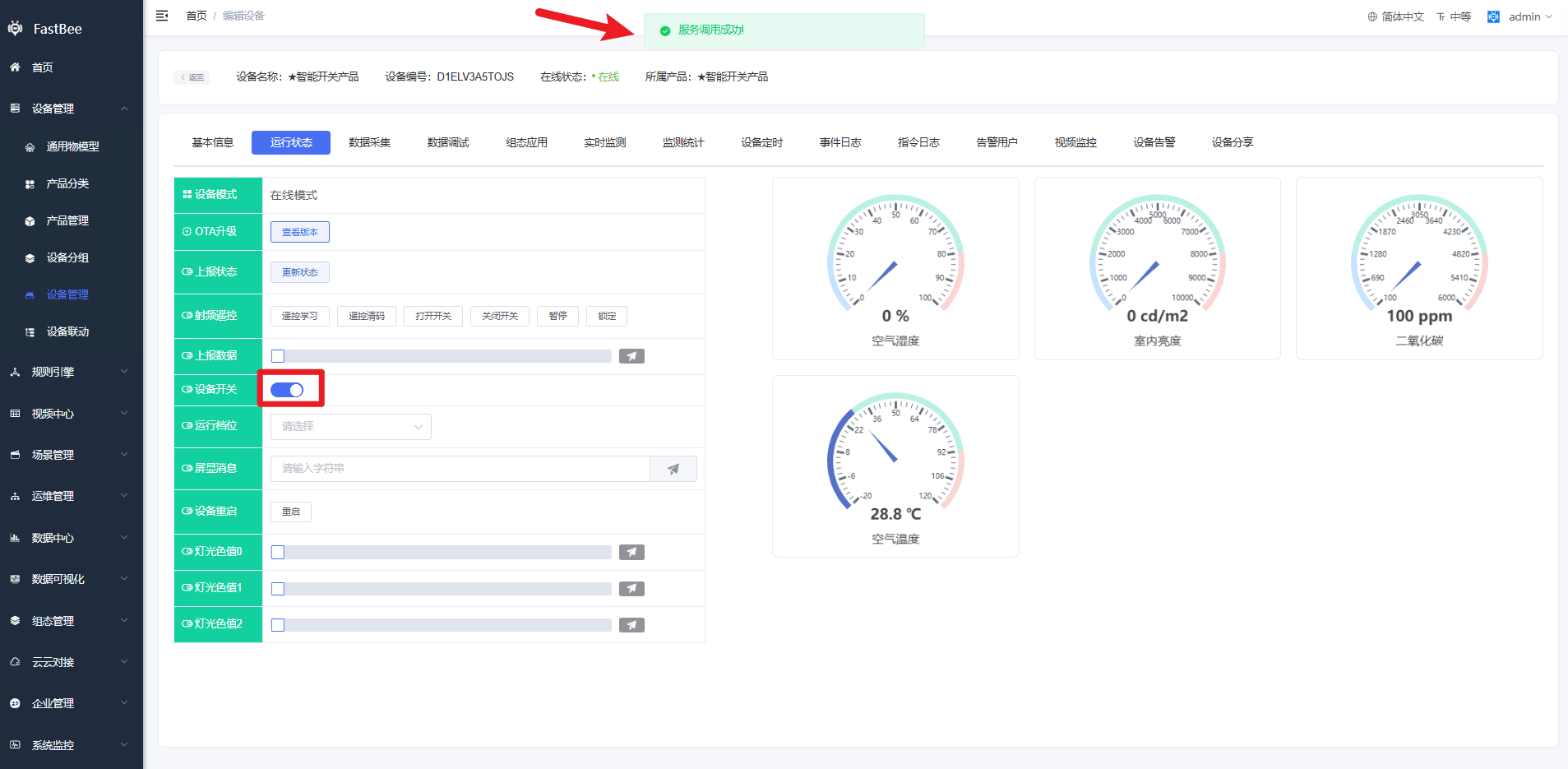

Platform command issuing 1Platform command issuing 2

For the complete workflow starting with product creation, see Product-to-Device End-to-End Flow.

4. FAQ ​

4.1. Why cannot MQTTX connect? ​

Check that the product is published, the device is not disabled, the Client ID uses the correct product ID and user ID, the credentials belong to the same product, and port 1883 is open on the server. When device authorization is enabled, the password must also include the device authorization code.

4.2. Why is data missing when the device is online? ​

Check the product ID and device number in the reporting topic, the JSON array format, and whether id exactly matches the Thing Model identifier. After changing the Thing Model, also confirm that the product has been republished and the device inherits the latest model.

4.3. Why does MQTTX not receive platform commands? ​

Confirm that the subscription topic is /{productId}/{deviceNum}/function/get, the device is still online, and the selected target is a writable property or callable function.
