IoT Card Management

Overview

IoT Card Management is used to maintain SIM card information, ICCID, carrier platform, device binding, traffic usage, and card status. It is commonly used when devices report through cellular networks.

Operation Flow

Key Concepts

Item	Description
ICCID	Unique identifier of the SIM card. Keep it consistent with device-reported data.
Card platform	Carrier or third-party card platform used for status and usage query.
Bound device	Device associated with the SIM card.
Usage status	Traffic, activation, suspension, expiration, and package information.
Device report	Device can report ICCID and platform identifier together with device info.

Reference Commands And Configuration

The following snippets are preserved from the source guide because commands, configuration keys, and protocol examples should remain exact.

   # 描述：1.设备上电后发布设备信息； 2.设备接收到设备信息指令后发布设备信息
   # iccid            可选，物联网卡的ICCID号，设备使用物联网卡时上传
   # cardPlatformId   可选，对应物联网卡管理-卡平台编号，设备上传ICCID号时上传，如果不上传则默认遍历所有卡平台查询

   {
	    "rssi": -43,
	    "firmwareVersion": 1.2,
	    "status": 3,
	    "userId": 2,
	    "longitude": 0,
	    "latitude": 0,
	    "iccid": 898604293620C0000970,
	    "cardPlatformId": 0,
	    "summary": {
		    "name": "FastBee",
		    "chip": "ESP8266",
		    "author": "fastbee",
		    "deliveryTime": "2023-06-06",
		    "activeTime": "2022-10-01"
	    }
    }

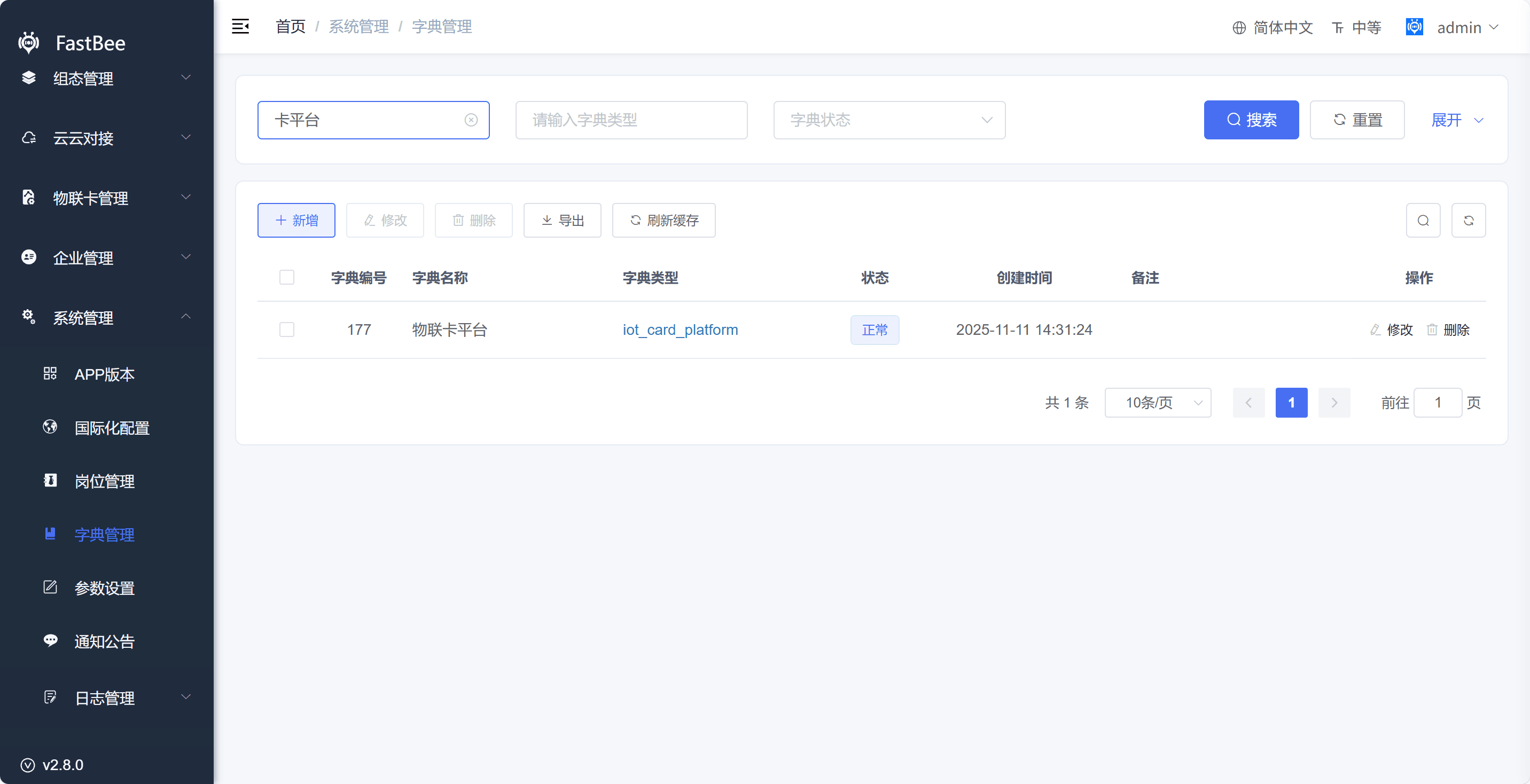

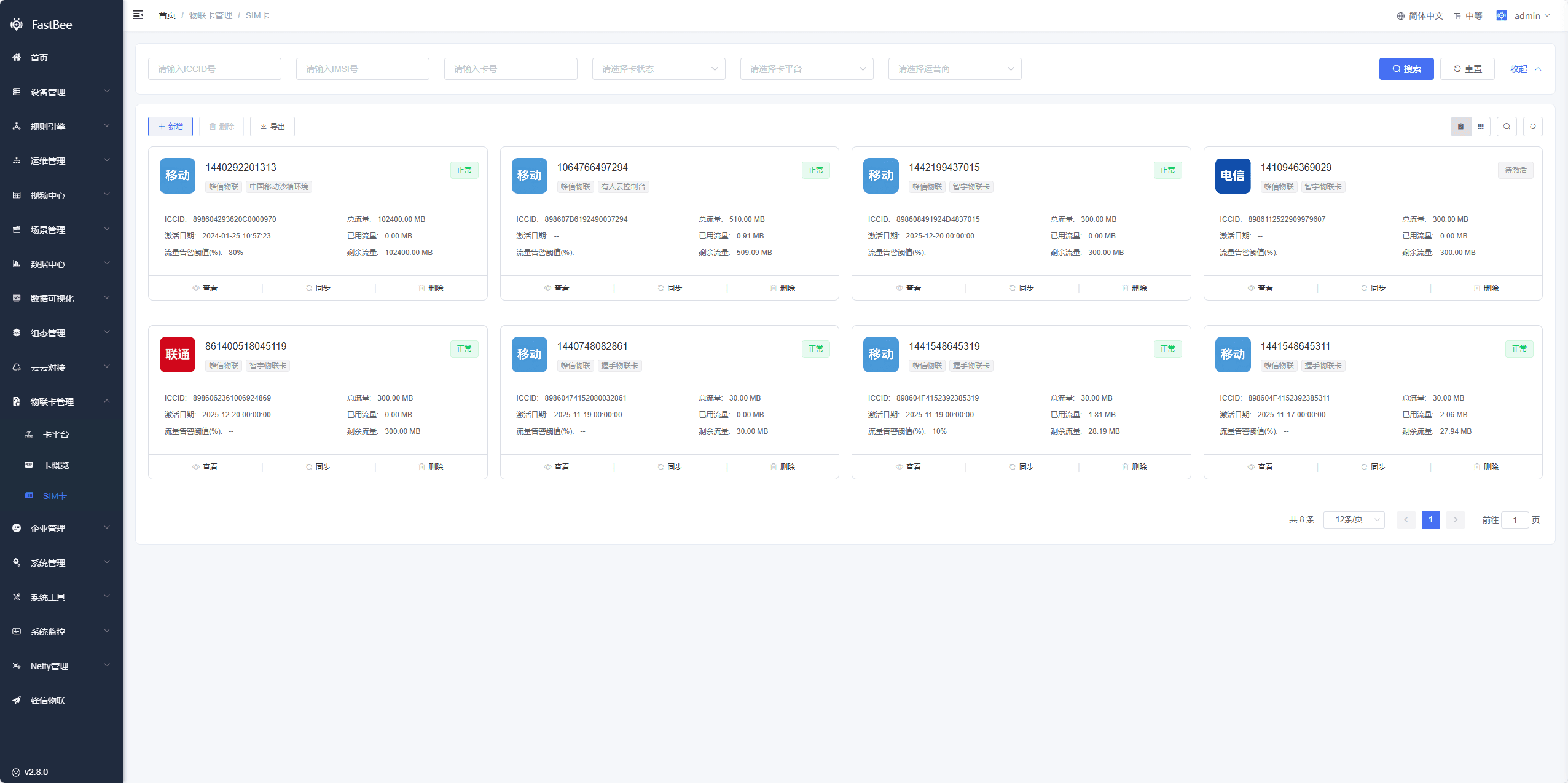

Shared Screenshots

The English documentation reuses the screenshots from the Chinese source page. UI labels in screenshots may remain Chinese.

Acceptance Checklist

Item	Expected Result

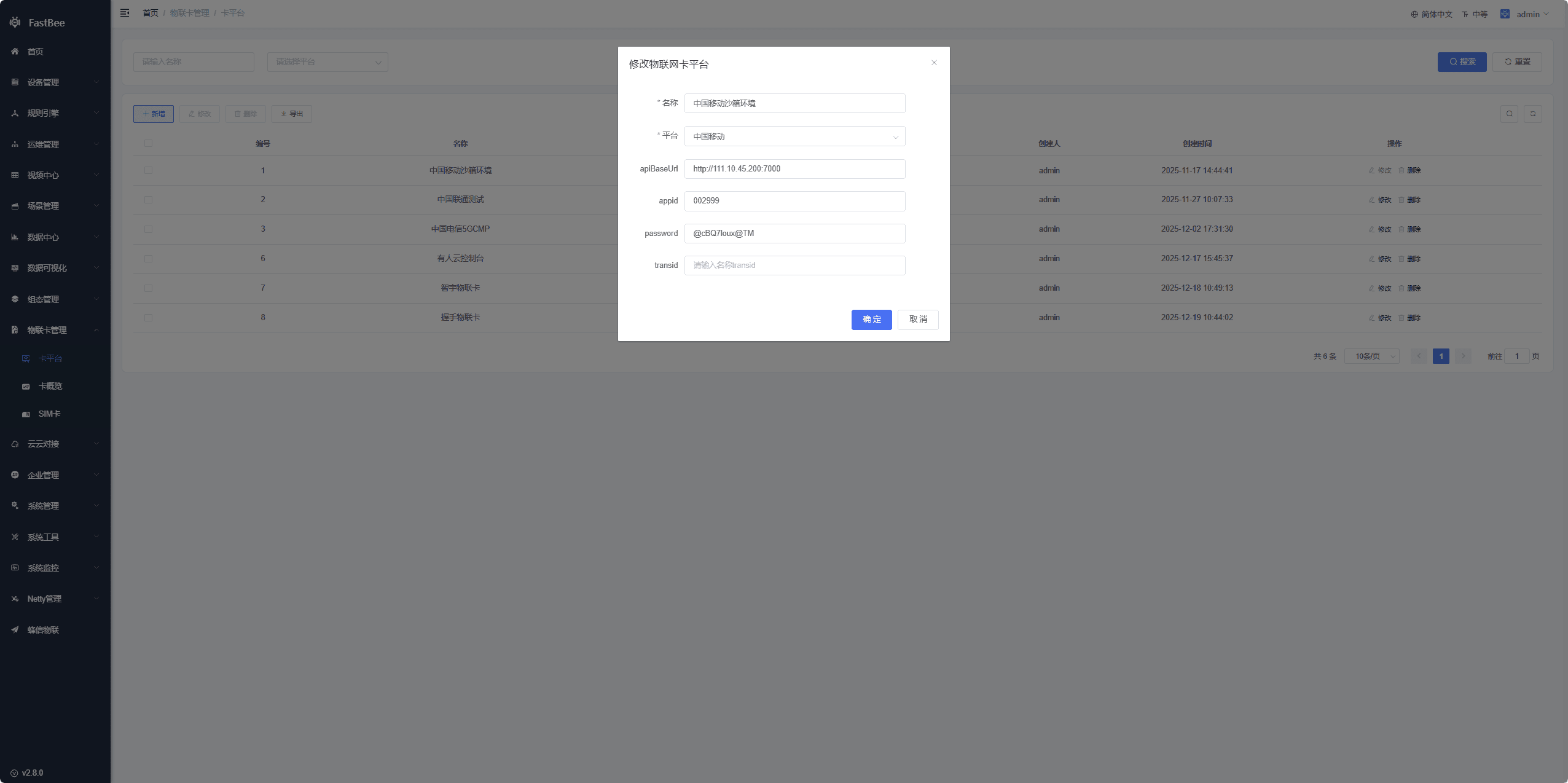

Card platform	API address, account, and secret are configured correctly.

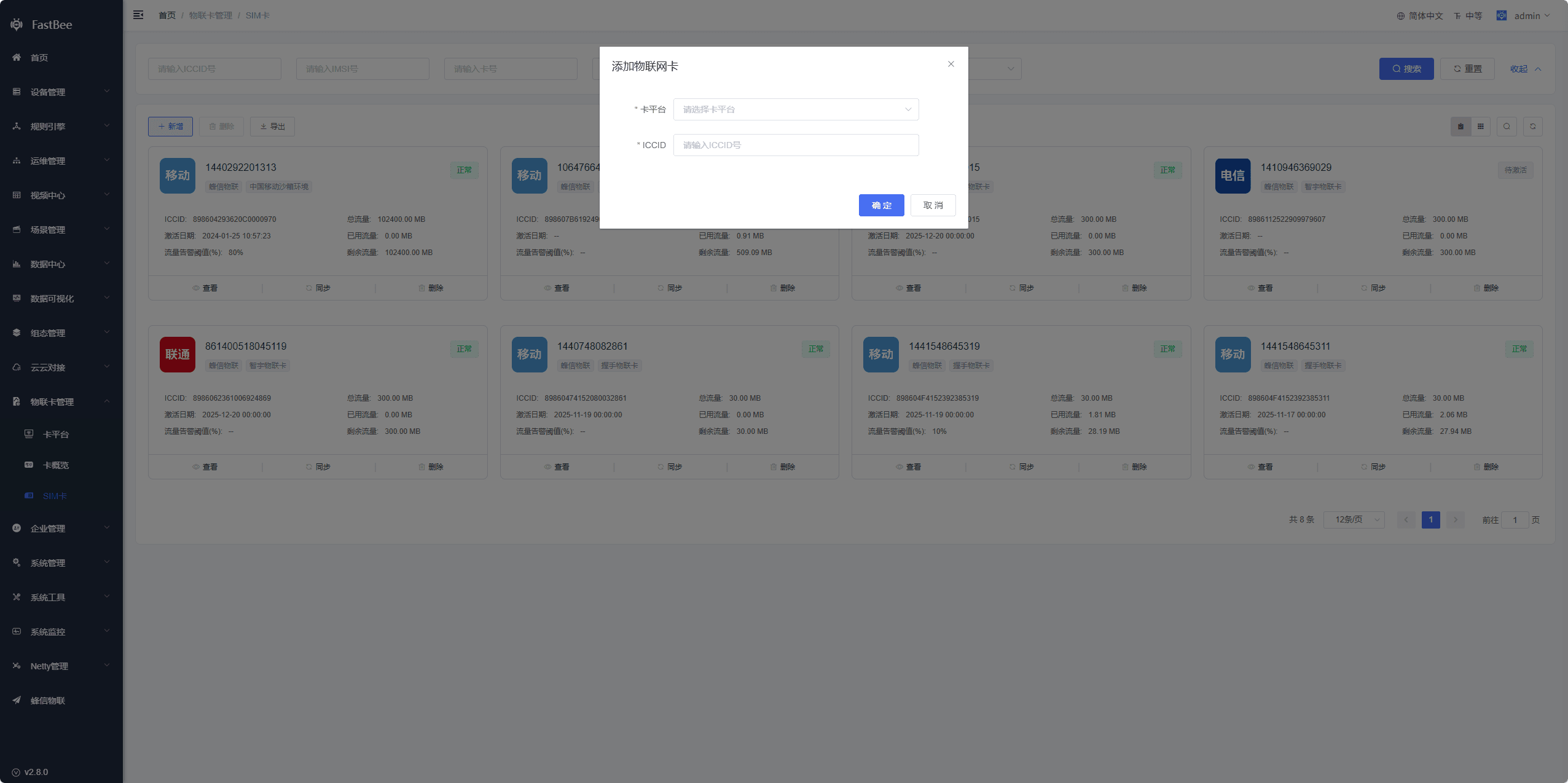

Add SIM card	Basic card information is synchronized after entering the ICCID.

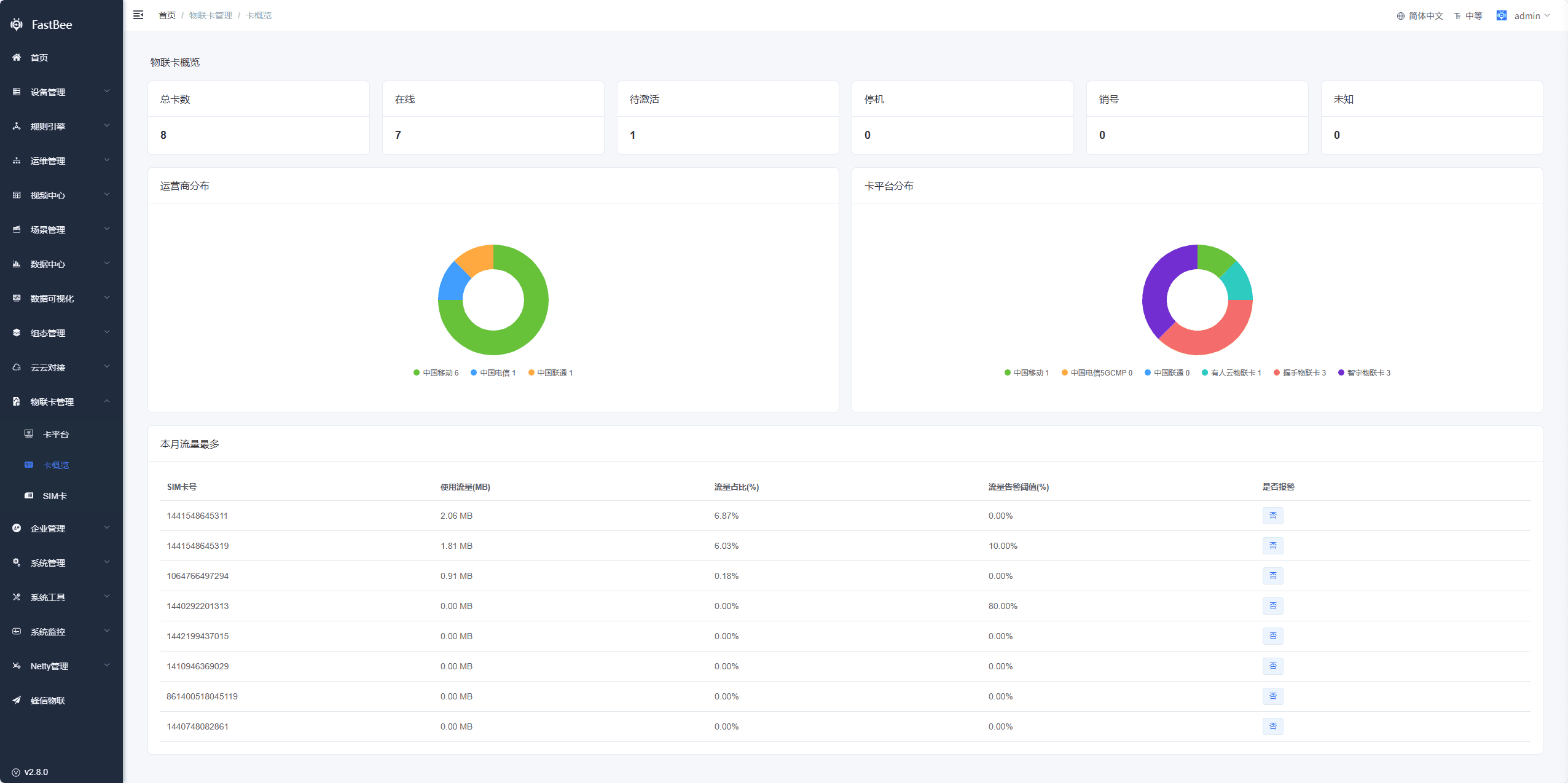

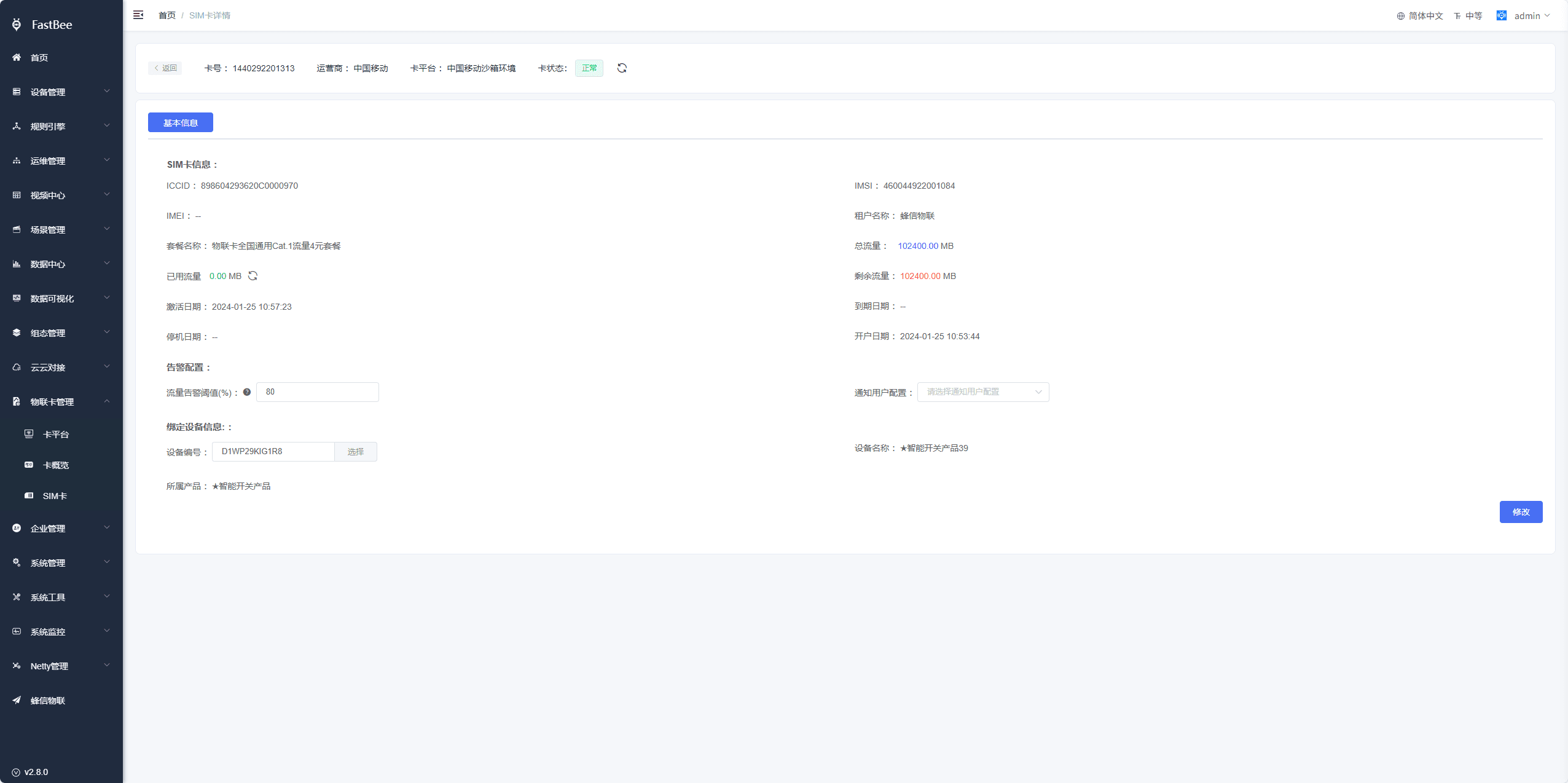

Card status	Status, traffic, and package information can be refreshed.

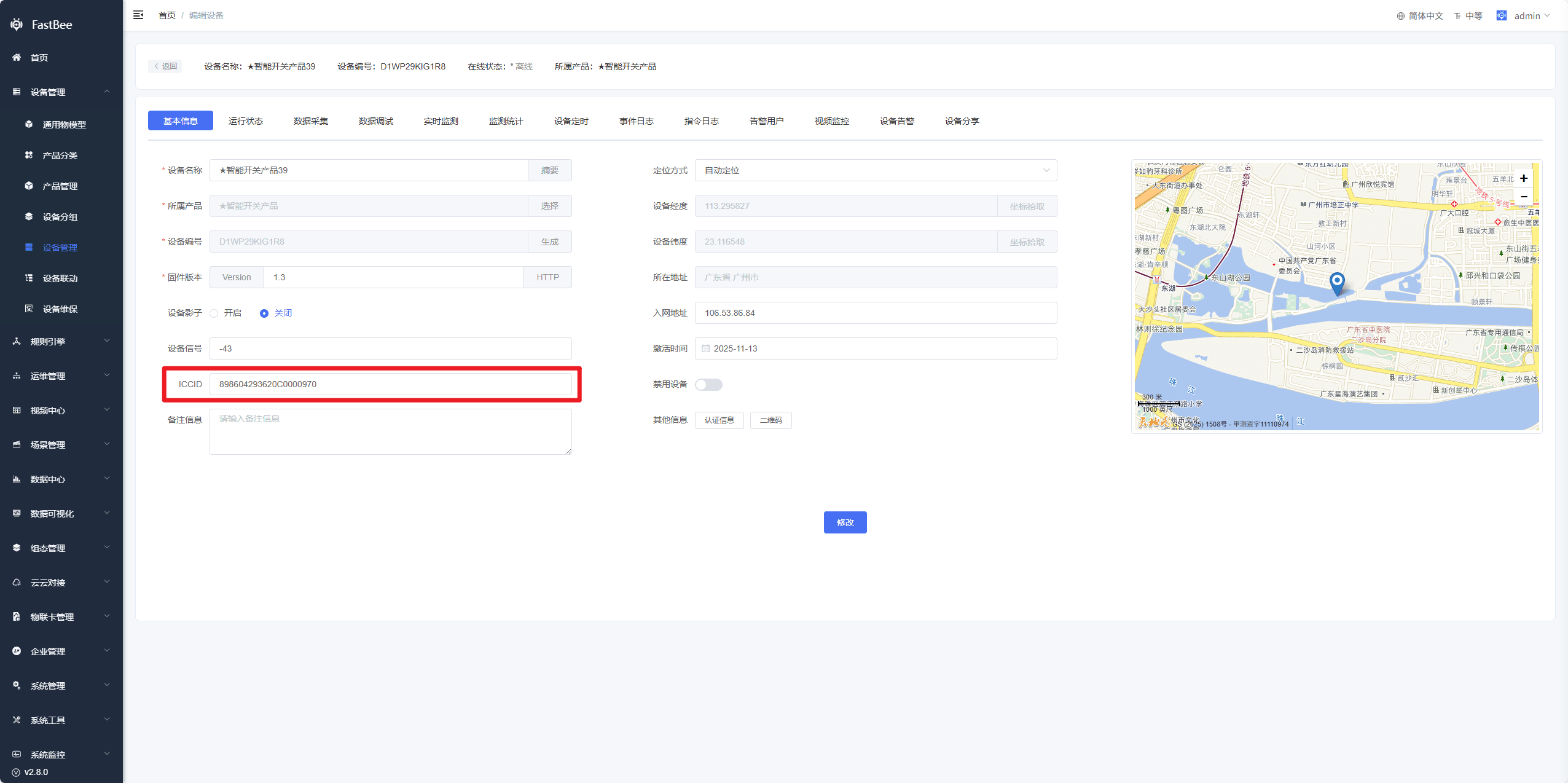

Device binding	The card is bound automatically after the device reports its ICCID.
Traffic alarm	A notification is triggered when the threshold is exceeded.

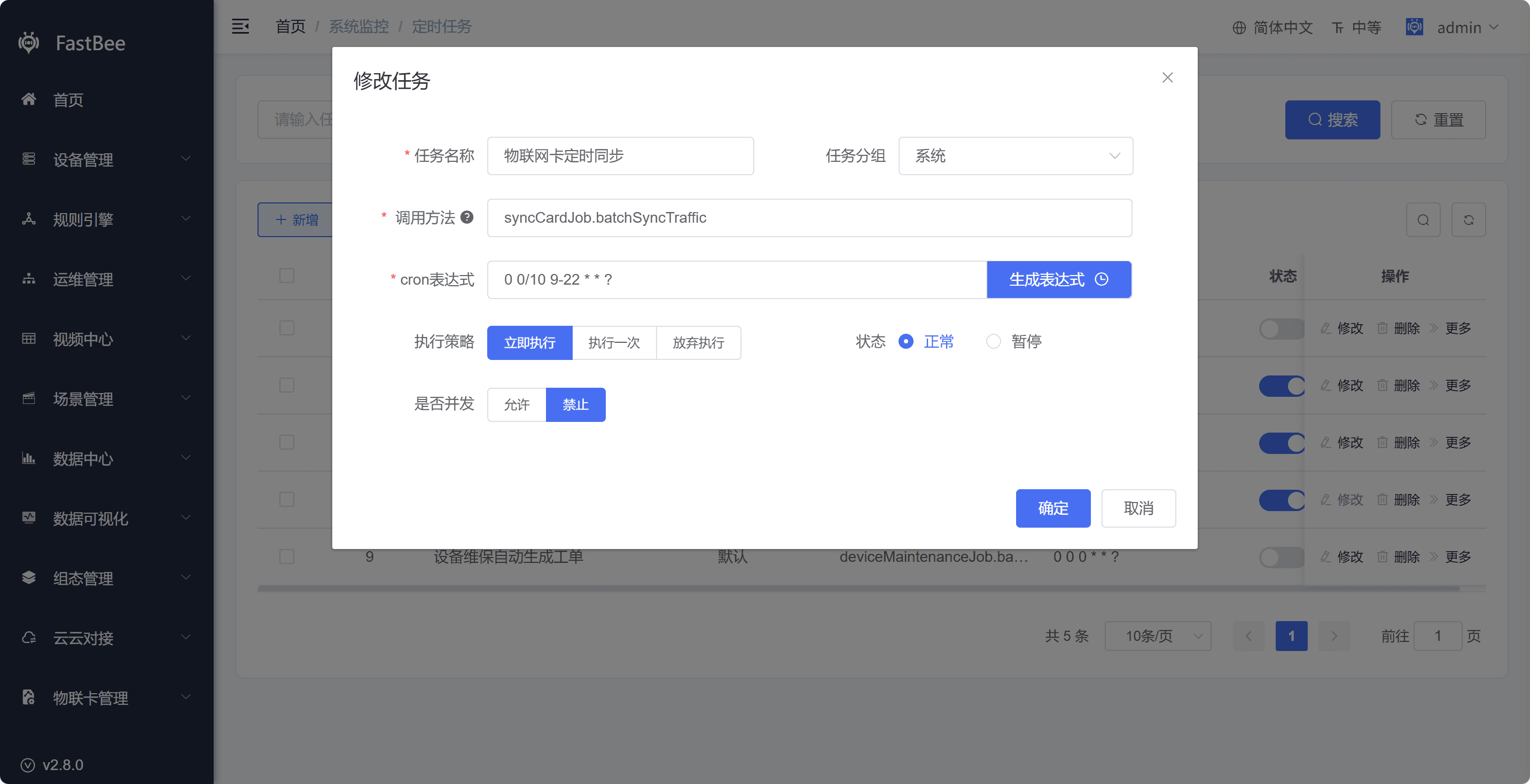

Scheduled sync	The scheduled task synchronizes card information periodically.

FAQ

Failed to add a card

Check the card platform API whitelist, account credentials, whether the ICCID exists, and whether the carrier platform has opened its API.

No binding after the device reports ICCID

Check the iccid and cardPlatformId fields in the /info/post payload, and whether the platform can synchronize the card.

Traffic data not synchronized

Check the scheduled task status, card platform API availability, server IP whitelist, and API rate limiting.

Alarm not sent

Check the alarm threshold, notified users, and email or notification channel configuration.

Development Entry

Type	Path Or API	Description
Frontend page	vue3/src/views/iot/card	Card platform, card overview, and SIM card list.
Backend API	Card management APIs	Card platform and SIM card management.

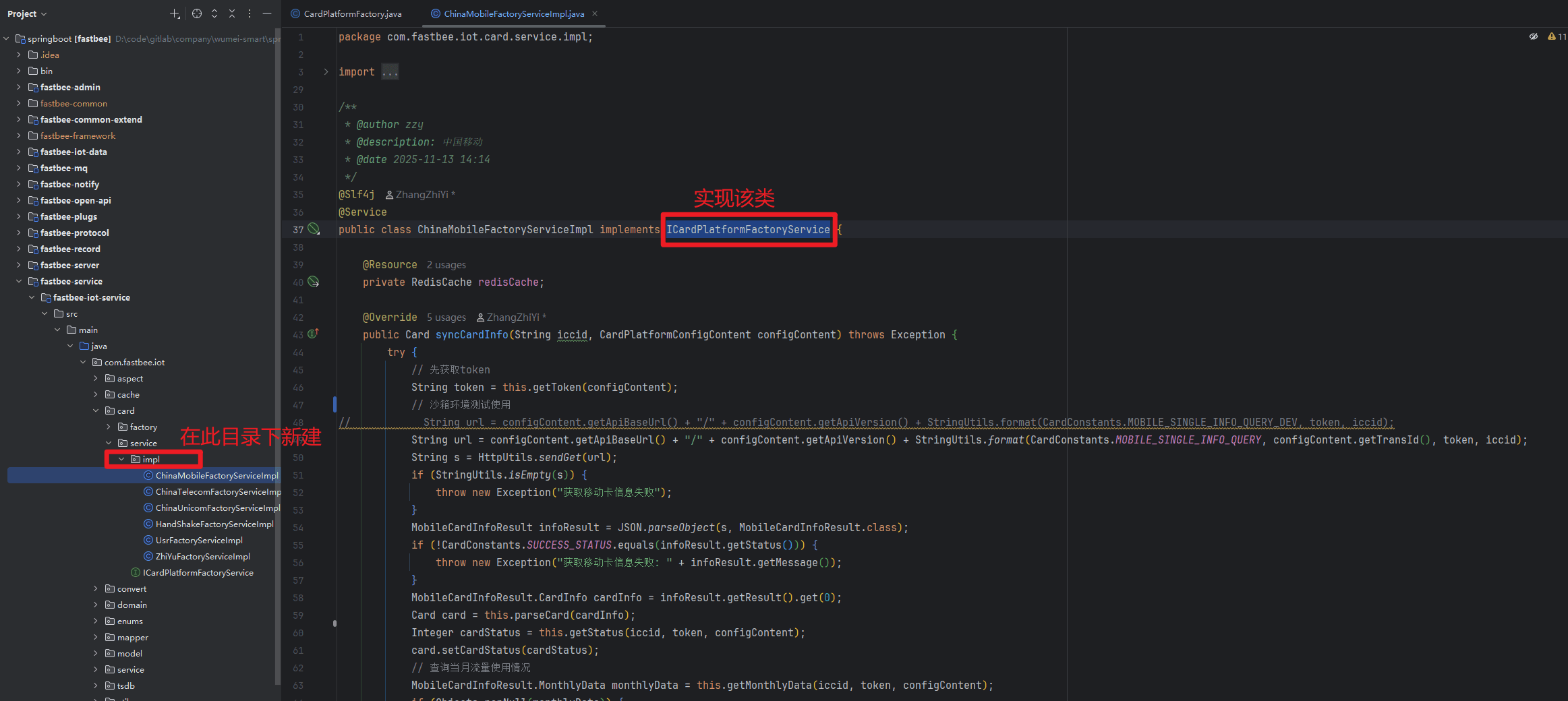

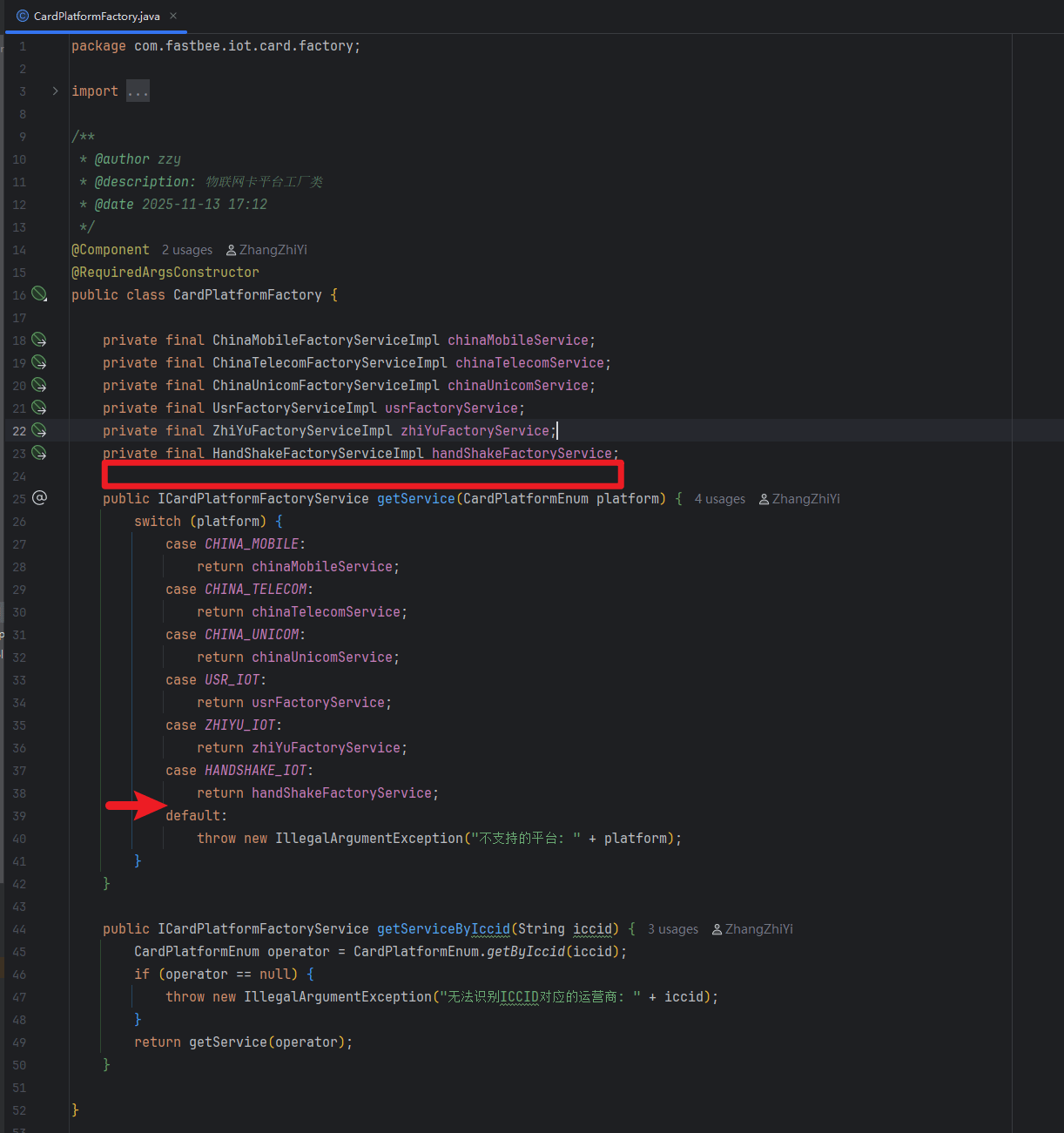

Backend extension	ICardPlatformFactoryService	Integration of new card platforms.

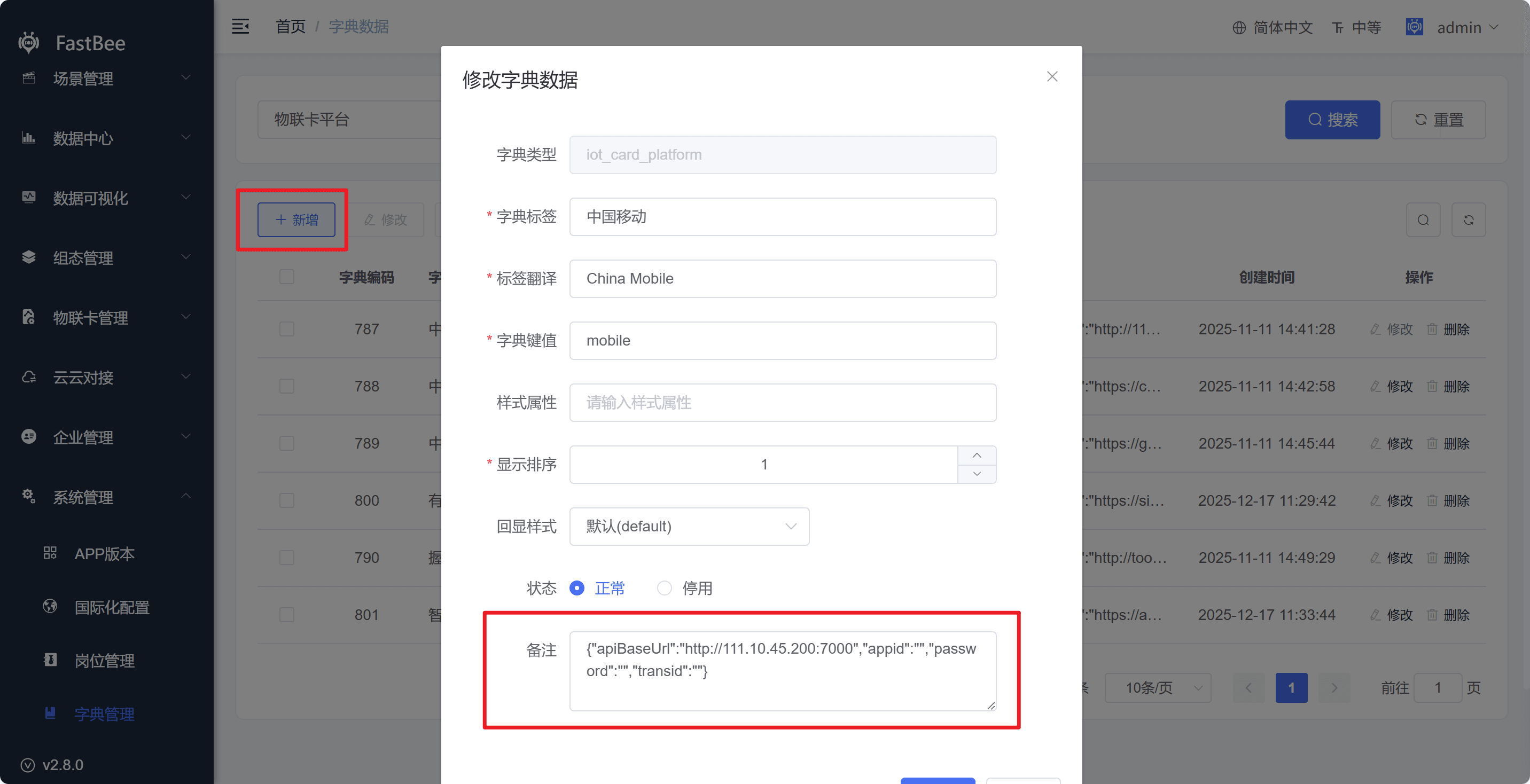

Configuration class	CardPlatformConfigContent	Card platform authentication parameters.
Database tables	iot_card, iot_card_platform	SIM cards and platform configuration.
